Intention
To judge and evaluate the microleakage At school II restorations utilizing open- and closed-sandwich methods with zirconomer as an intermediate materials.
Materials and technique
Twenty-six non-carious mandibular first molars have been chosen and randomly divided into two teams (teams 1 and a couple of the place n=13). A standardized Class II preparation was made with the cervical margin 1 mm under the cementum-enamel junction. Samples of group 1 have been restored utilizing the open-sandwich method and samples of group 2 with the close-sandwich method, and zirconomer was used as an intermediate restorative materials. Following that, the restorations underwent 200 warmth cycles with dwell instances of 20 seconds at 5°C and 55°C. Dye penetration and scanning electron microscope (SEM) evaluation utilizing the reproduction strategy have been used to evaluate adaptation on the cervical margin. The information have been statistically analyzed utilizing the Paired T-test (p<0.05).
Outcomes
Decrease dye penetration was seen within the open-sandwich method in comparison with the closed-sandwich method (p<0.001).
Conclusion
When evaluating the open-sandwich method with the closed one, it was noticed that much less microleakage was seen within the open-sandwich method because it has higher marginal adaptation and fewer voids.
Introduction
The first intention of dentistry is to have materials with a minimal poisonous impact on pulp and an appropriate seal on the microscopic stage when used for the restoration of a cavity [1]. The fabric utilized in restorative dentistry ought to be biocompatible, with a coefficient of thermal enlargement much like that of the tooth, higher marginal sealing, chemical bond with tooth construction, and higher color stability [2]. Contemplating the reason for failure of restorative materials, microleakage is the most typical trigger because it results in secondary caries and irritation to the pulp. Microleakage in conservative dentistry is the foremost setback encountered in scientific follow resulting in compromised restorations [3]. Kidd in 1976, was the primary to present a definition of the time period microleakage and its scientific elements. “It might be outlined because the clinically untraceable opening for micro organism, fluids, molecules or ions between a cavity wall and the utilized restorative materials to it” [2]. Microleakage can result in secondary caries, hypersensitivity, decreased lifetime of restoration, and marginal discolouration. The primary space of concern is to have a cloth that bonds successfully with the partitions of the ready cavity [4].
For many years, amalgam has been used efficiently for restoration of sophistication II cavities however as the fabric shouldn’t be aesthetic and in addition there are hazardous results of mercury, it’s being changed by composites [5]. Composite resin is essentially the most generally used tooth-coloured restorative materials. However difficulties are nonetheless there when it’s used immediately in proximal restoration. Amongst all of the difficulties, the most typical is polymerization shrinkage which results in the formation of a niche [6]. Microleakage in school II restoration principally happens on account of masticatory stresses and thermal adjustments which results in secondary or recurrent caries. Few scientific research have proven that it’s the most evident purpose for the alternative of restoration [7]. The bond between resin and enamel is mostly passable however the bond with dentin shouldn’t be satisfactory, which results in the formation of a v-shaped defect on the cavity margin located within the cervical area on account of much less enamel throughout polymerisation [8].
To beat this downside of marginal leakage, varied scientific methods have been launched. McLean and Wilson launched a way in 1977 wherein a glass ionomer cement base was used to considerably change the composite resin restorative materials within the proximal field [9]. This system is named “composite-laminated GIC” or “sandwich” restoration [10]. Earlier the filler that was used within the sandwich method was glass ionomer cement. However this materials undergoes acid-base response and in addition it requires time to set. So, as a substitute of utilizing standard glass ionomer cement, zirconomer (zirconia + GIC) is getting used. This materials has satisfactory power and sturdiness and when in comparison with amalgam, the hazardous impact of mercury is eradicated [5].
Within the conventional “closed-sandwich” method, zirconomer is positioned within the basal space of the proximal field not reaching the exterior cavo-surface. following the setting of the zirconomer cement, it’s etched utilizing 37% phosphoric acid for 20 seconds. Then dentin bonding agent is utilized and lightweight cured for 20 seconds. Lastly, the composite resin is positioned first within the proximal field after which on the occlusal floor. On this method, zirconomer shouldn’t be uncovered to the oral surroundings.
Within the “open-sandwich” method, zirconomer is positioned within the basal space of the proximal field as much as the exterior cavo-surface and composite resin restoration is finished to the identical stage. The first benefit of the “open-sandwich” method is that it gives a bigger floor space of zirconomer which in flip permits the buffering of the acidic pH of the oral cavity. So this investigation was designed to guage microleakage in school II restorations utilizing open- and closed-sandwich methods utilizing zirconomer as an intermediate materials.
Supplies & Strategies
Knowledge assortment
Institutional moral committee grants permission to conduct this examine (Ref No. DMIMS(DU)/IEC/2020-21/134). Knowledgeable consent was taken from the sufferers, whose enamel have been eliminated on account of periodontal issues, to make use of their extracted enamel for the examine. Human everlasting mandibular molars extracted on account of lack of periodontal help have been collected with the assistance of the Division of Oral and Maxillofacial Surgical procedure, Sharad Pawar Dental Faculty, Sawangi (M), Wardha. Amongst these, 26 sound wholesome enamel have been collected.
Inclusion standards
Tooth with an absence of caries, restoration, cracks, and white spots have been chosen.
Cavity preparation
All samples have been cleaned and saved in distilled water. A mesio-occlusal class II cavity was ready utilizing a spherical bur (Mani diamond rotary instrument, Tochigi, Japan) on all of the enamel. the size of the cavity on the occlusal floor have been such that it was 3 mm extensive and its depth was 2 mm. Within the proximal field, the cervical margin was positioned 1 mm under the cemento-enamel junction. The width of the proximal field was 4 mm bucco-lingually and the depth was 2 mm as proven in Determine 1. These dimensions have been then checked utilizing Boley’s gauge (Belief and Care, New Delhi, India). A ±0.3 mm tolerance within the measurements was thought-about acceptable for together with the specimen within the trial. Not one of the margins of the preparation had a bevel. After each fifth cavity preparation, new bur was used. Cavity preparation for every tooth was performed by the identical particular person in order to standardize and keep away from bias in the results of the examine.
Restorative process
Random division of the enamel was performed into two teams of 13 specimens every in line with the method employed for restoration. Group 1 comprised of open-sandwich method and group 2 comprised of close-sandwich method.
In Group 1 (open-sandwich method), air-drying of the cavity was performed and a 1-mm thick base of zirconomer (Zirconomer, Shofu, Japan) was positioned on the cervical margin as much as the exterior cavo-surface and it was allowed to set. As quickly because the zirconomer was set, it was etched utilizing 37% phosphoric acid for 20 seconds. Following this, a dentin bonding agent was utilized and lightweight cured for 20 seconds. Then, composite resin (Dentsply Spectrum Composite package) was positioned in a thickness of two mm over the gingival wall of the proximal field. The composite was then packed inter-proximally in the direction of the steel matrix. The restoration was performed as much as the occlusal floor strictly following the inside floor of the matrix band. After the variation of the fabric, it was light-cured. Then horizontal increments of two mm of thickness have been positioned on the occlusal margin of the cavity leaving the zirconomer uncovered to the oral surroundings.
In Group 2 (closed-sandwich method) after placement of the zirconomer on the base of the proximal field such that it falls simply quick i.e., 1.5 mm of the exterior cavo floor, etching, and bonding of the zirconomer have been performed. Composite resin was positioned within the proximal field and occlusal floor, leaving the zirconomer encased throughout the preparation.
Dye penetration check
Samples have been then processed for thermocycling. The temperature of the tub was saved at 50° to 55°C for 200 thermocycles. The cycle in every bathtub lasted for 30 seconds with 10 seconds of switch time. With the assistance of modelling wax, the apex of the foundation was sealed to stop the ingress of dye. The samples have been then coated with nail varnish, making use of two coats round all surfaces of enamel leaving 2 mm of the marginal space across the restorations. Immersion of the pattern was then performed in methylene blue dye, maintaining it within the dye for sooner or later at a room temperature of 37 levels. Samples have been then washed below operating water for one minute after which air dried. Within the subsequent step, restorations have been sectioned longitudinally by way of the centre of the tooth. They have been sectioned through the use of a diamond disc (Taboom Diamond Disc DDOOO1 4A HP) together with water as coolant. Sections have been examined at 32X magnification below a stereomicroscope (Lobovision, India). The samples have been then scored in line with the scoring system given by Pontes DG, 2002 as scores of 1, 2, and three (Determine 2). The scores have been evaluated by two examiners who have been precalibrated to measure the dye penetrated. The samples have been coded and blended for blinding in order that the investigators couldn’t determine the group of samples.
Statistical evaluation
All information have been statistically analysed utilizing SPSS software program, model 15.0 (SPSS Inc., Chicago) utilizing a parametric paired T-test. Statistical significance was taken as a p-value lower than 0.05.
Outcomes

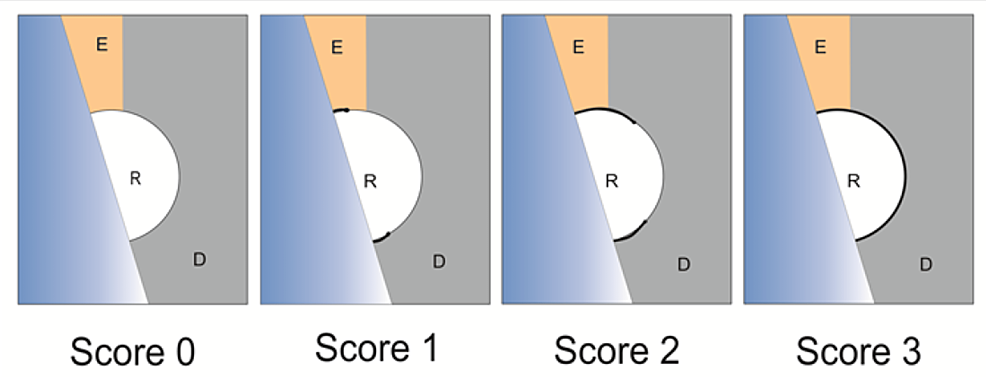

In gentle of the present examine, each the examined teams confirmed some quantity of dye penetration with extra dye penetration seen within the closed-sandwich group. Desk 1 experiences the values of microleakage scores recorded on the cervical margin within the two experimental teams, together with the statistical significance of the between-group distinction. Paired T-test confirmed that decrease microleakage was seen within the open-sandwich method than within the closed-sandwich method.
Desk 2 depicts a comparability of microleakage between the open-sandwich method and the closed-sandwich method. Scanning electron microscopy (SEM) observations on the gingival margins of Group 1 specimens revealed satisfactory marginal adaptation with out interfacial gaps or voids. It was noticed {that a} slight overhang was seen in one of many specimens, most likely on account of an inaccurate matrix placement whereas marginal adaptation was much less passable in Group 2 specimens. Thus, it may be interpreted that marginal adaptation is best within the open-sandwich method resulting in lesser microleakage when in contrast with the closed-sandwich method.
The null speculation is rejected from the outcomes which confirmed there was a big distinction between open- and closed-sandwich methods with zirconomer as an intermediate layer in school II restoration that prolonged under the cemento-enamel junction. Thus it may be stated that the closed-sandwich method doesn’t present good marginal sealing on the cervical margin of the restoration.
Dialogue
The search for a dental cement having the perfect adhesion to enamel and dentine of tooth in order to seal the interface between restoration and tooth with out compromising mechanical and bodily properties is endless [11]. Microleakage by that means is the passage of small quantities of fluids together with particles within the hole between a dental cement and the cavity margin on the floor. Attributable to ill-fitting margins of cement or restoration, microleakage can’t be measured clinically. Recurrent caries and pulpal irritation are the most typical sequelae of leakage aside from sensitivity and discolouration and compromised aesthetics of tooth-coloured restorations. Marginal leakage is a vital parameter from a scientific view as it will possibly have an effect on the longevity of the restoration and if compromised, results in its failure [12].
At current, there are numerous strategies to measure microleakage (Alani and Toh, 1997) [13]. Some newer developments with microleakage testing are radioisotopes, dyes, air stress, neutron activation evaluation, pH adjustments, and scanning electron microscopy [14]. Although conventional and one of many oldest strategies, dye penetration is likely one of the commonest strategies employed to verify leakage. Its benefits embody much less method sensitivity, ease of efficiency, and cost-effectiveness (Raskin et al., 2001) [15]. Within the current examine, 2% methylene blue dye was used to check the samples. The essential property of methylene blue is its small molecular weight which is smaller than some micro organism discovered within the oral habitat and in addition it will possibly penetrate the dentinal tubules simply [16].
Thermocycling is a way generally used for in-vitro research to check the predictability of dental cement in situations that mimic intraoral temperature adjustments by exposing the restorations to temperature adjustments that may happen throughout the oral cavity [17]. The diploma of dye penetration shouldn’t be influenced by the variety of thermal cycles. Subsequently, within the current examine, the samples have been uncovered to 100 cycles for 30 seconds [18].
On this in-vitro examine, two totally different restorative methods for sophistication II restoration have been evaluated to measure their sealing efficiency. Right here the null speculation was rejected, because the dye penetration was least within the open-sandwich method when put next with the close-sandwich method. Korkmaz et al. of their examine demonstrated that the closed-sandwich method requires better operator ability and achieves comparatively poor marginal adaptation [19]. In varied microleakage research, it was discovered that the dye tracer penetration was better when the margins have been situated in dentin than in enamel [20,21]. This can be attributed to the truth that the contraction forces which happen throughout the polymerizing composite resin are enough to disrupt the bond between the zirconomer and dentin, primarily within the preliminary levels of cement maturation [22].
Within the current examine, the sandwich method with zirconomer because the liner was used because it reduces the majority of composite resin in restoration. In line with the literature, the polymerization shrinkage stresses have been relieved by 20-50% and volumetric contraction by 41% [23]. Different traits have been additionally famous to have improved, together with fluoride launch (discovered within the authentic glass ionomers), true adhesion, decreased microleakage, low water solubility coefficient and fluid absorption, longer working instances, elevated fracture toughness, and higher mechanical and chemical traits.
From the statistical evaluation, it was discovered that there was no important distinction in microleakage on the gingival and occlusal space within the open sandwich method. This was in accordance with Khadim AJ [24] and Pouyanfar et al. [25] research. That is defined by enamel’s comparatively excessive mineral content material, constant structural formulation, and skill to function a reliable substrate for micromechanical bonds to composites. Essentially the most troublesome substrate for bonding is gingival dentin. Because the lining materials used within the sandwich method is sufficiently versatile to withstand the stress attributable to polymerization shrinkage and may favourably dissipate stress attributable to thermal variations, water absorption, and occlusal load throughout the interface, it serves as an “elastic buffer” [26].
In distinction to the open-sandwich method, the microleakage was considerably increased within the gingival space than within the occlusal space within the closed-sandwich method. This was in accordance with Nematollahiet et al. [27]. This can be on account of polymerization shrinkage and a excessive coefficient of thermal enlargement which results in adjustments in dimensions [25].
The aim of this examine was happy because it was seen that microleakage was much less within the open sandwich method when put next with the close-sandwich method. These in-vitro microleakage research are the premise for any in-vivo research as they supply preliminary info to beat damaging outcomes to check totally different new restorative supplies and methods.
This in-vitro examine’s limitations embody the shortage of stimulation of the dynamic intraoral thermal adjustments introduced on by common consuming and ingesting, the absence of outward circulation of the dentinal fluid, utterly altered dentinal floor by extraction, and solely supreme cavities being ready. Because of this, there’s a poor correlation between in-vivo and in-vitro situations. Nonetheless, these in-vitro microleakage research function the muse for all in-vivo research since they provide preliminary information which may be used to beat discouraging findings and distinction varied novel restorative supplies and strategies.
Conclusions
In accordance with the prompt method and throughout the constraints of an in-vitro examine, it may be concluded that not one of the methods examined within the examine was freed from microleakage, and cavities that have been stuffed with the open-sandwich method confirmed much less microleakage with higher marginal adaptation and fewer voids than the closed-sandwich method. Zirconomer positioned within the gingival flooring of sophistication II composite restoration (open-sandwich method) could also be a sensible technique to scale back microleakage.
